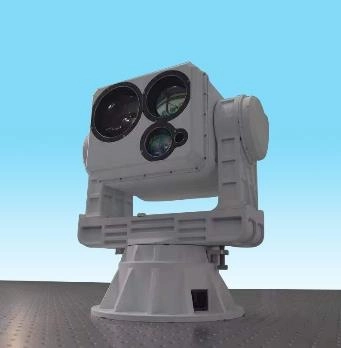

To meet the needs of low and slow small UAS and aircraft take-off and landing status  monitoring in complex environments, the multi-dimensional target tracking system is  developed, which integrates multi-dimensional optical imaging such as visible light, infrared  and polarization and high-precision laser ranging, breaking through the integrated design of  optical and mechanical structures, high-precision dynamic tracking, multi-dimensional target  recognition and other technologies. With all-weather, all-day multi-target long-distance  tracking, ranging, imaging recognition and other functions, real-time provide and store target  coordinate position, size, speed and other parameters. Solve the problem of precise tracking,  measurement and identification of dynamic small targets under complex observation  conditions such as strong light and haze. It is equipped with a directional interference module  to cut off the contact between the UAV and the satellite or remote control to achieve  countermeasures against the UAV. It can be used to monitor and track unmanned aerial  vehicles in airports, wharves, borders, factories, large event sites and other areas. It can be  extended to all day astronomical observation and other fields.

1) Resolution: 2048×2048 (visible), infrared (640×512)

2) Tracking accuracy: 50μard 3)

Ranging accuracy: 1m

4) Tracking distance: 3km

5) Azimuth rotation range: -180°~+180°;

6) Pitch rotation range: -10°~+80°;

7) Interference frequency band: 400MHz, 800MHz, 2. 4GHz, 5.8GHz

8) System weight:
